Technical Specifications:
Caliper Distance: 108 mm
Off-set: 22.5 mm
Caliper Pistons: 4 auto-ventilated titanium or alumium pistons, diameter 34 mm
Dust Seal: Not included with titanium pistons / included with aluminium pistons
Brake Pads: 4 pads with code AGPA134
Caliper Finish: Black Anodizing or Nickel plated
Bracket included and compatible with various Harley Davidson models, refer to the application list.
Features:

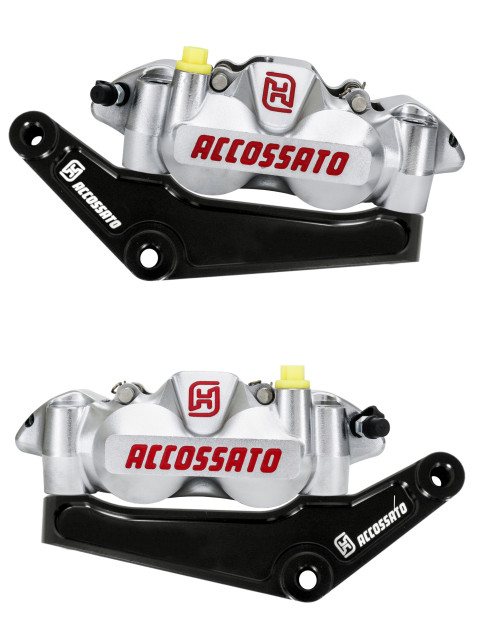

The Accossato radial caliper is crafted using the most advanced technology and the finest materials available on the market. The caliper's shape is the result of complex CAD studies, ensuring minimal weight, optimal body rigidity, and the best heat dissipation capacity generated during braking. Throughout the machining process, the caliper body undergoes 100% inspection by three-dimensional laboratory machines.
4 Reasons to Choose an Accossato Brake Caliper:
- Aesthetics: Because every aesthetic detail is meticulously crafted in Accossato radial calipers.
- Product Range: Wide selection of models with various colors and center distances to cater to diverse preferences.
- Quality of "Made in Italy": All radial calipers are manufactured in Italy. Each component is designed to ensure maximum braking performance, reflecting the quality associated with "Made in Italy."
- Quality Control: Before being installed and introduced to the market, all Accossato radial calipers undergo thorough 100% inspection and testing to ensure optimal performance and reliability.
Warranty and Inspection:
The warranty is valid for a duration of 24 months from the date of the invoice.
Each produced caliper is assigned a serial number, making it uniquely identifiable from all other radial calipers. Removal of this serial number results in the loss of warranty and support.
The caliper inspection carried out internally by Accossato technicians is completed within one working week from the receipt of the radial caliper. The inspection includes: external inspection of the product, disassembly of the caliper into all its parts, microscopic visual inspection of each caliper component, visual inspection of the caliper's internal body, replacement of gaskets, assembly of all parts, static testing, and dynamic testing. Replaced parts are scrapped, and from the moment of inspection, the caliper gains an additional 12 months of warranty, upon presentation of the invoice. A further inspection (the second) does not extend the product warranty. The inspection does not include the replacement of other external components not mentioned. In case of a fall, the inspection is carried out exclusively if essential conditions are met for the caliper to return to optimal functioning conditions, equivalent to a new caliper.
Parts and Accessories:
- Code: FL005 - Brake Caliper
- Code: AGPA134 - Brake Pad available in four compounds: OR, ST, ZXC, EV2
- Code: PT034 - Auto-ventilated titanium piston
- Code: PA034 - Aluminium piston
- Code: PT034 - Auto-ventilated titanium piston
- Code: UP034 - Piston seal Ø34
- Code: AGM01 - Anti-vibration spring
- Code: AGFS - Safety clip
- Code: RC012 - Bleed Valve M8x1
